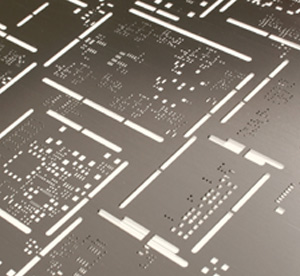

Stencils and Custom Stencils

Since 1994, SolderMask, Inc. has fabricated solder paste stencil using a photo-chemical etching process. In 1998, SolderMask, Inc installed their first laser to cut the apertures of the solder paste stencil. Now, SolderMask, Inc. has 3 lasers for this work. The photo-chemical etching process is still used as part of the process to fabricate step stencils. It is also used to manufacture thin metal parts.

In 2005, SolderMask, Inc. installed an electro-polishing process to improve the quality and smoothness of the laser cut aperture walls. This provides for a more complete release of the solder paste.

SolderMask, Inc. currently manufactures:

●  Laser Cut Stencils
●  DEK VectorGuard Reusable Frame System
●  Stepped Stencils
●  Foil ONLY Stencils
●  Epoxy Stencils
●  Short run Prototype Stencils with fixture
●  Micro BGA and BGA rework stencils
●  Hybrid Stencils (Apertures Chemically etched and Laser Cut)
●  Relief Stencils / Stacked Stencils

VectorGuard Solder screen Cabinet  NEW!

Click here for details

  ●  Request Information

  ●  Stencil Quote
