Equipment Selection List

Centrifuge Bubble Removal Machine GAM 62A

Drill Bit Ring-Setting Automatic Measurement and Inspection Machine GAM 80M

Hole Inspection Machine for Printed Circuit Boards GAM 900

Laser Vision Solder Measurement System GAM 70

NC Data Programming Machine GAM 800We

Reflow Oven Temperature Profile Checker GAM 200A

Solder Cream Mixer GAM 60/60A

SMT Feeder Calibration Jig Machine GAM 20

Stencil Hole Ultra Sonic Cleaning Machine GAM 40

V-Cut PCB Separator GAM 30

Vision Added Measurement Inspection System GAM 800C

GAM 20 Feeder Calibration Jig Machine                            Back to top

     ● Feeder simulation available
     ● Effectively prevent the missing chip problem from imprecise feeder
     ● Adjust feeder precision in simulation mode
     ● Easy viewing of process

GAM 30 V-Cut Separator                                                 Back to top

     ● High performance removal of bubbles from adhesive
     ● Universal Holder for all types of dispense tubes
     ● Large clear countdown display
     ● Adjustable spin time
     ● Compact system with low power usage

GAM 40 Stencil Hole Cleaning Machine                               Back to top

     ● On-Line stencil hole cleaning
     ● Ultrasonic solder paste removal
     ● Easy to operate



GAM 40 SMT Stencil Hole Cleaning Machine
		·     Immediate cleaning ability for steel stencils on-line. ·     Overcomes the blind spot of auto-clean (dry/wet), cleans all solder paste on Fine-Pitch steel holes. ·     Cleans steel holes thoroughly by ultrasonic vibration, without harming the steel stencil. ·      No need for CFC solvent, no environmental pollution
Features ·     Provides an immediate cleaning capability to the steel plate on-line; ensures the quality in continuous printing. ·     Cleans thoroughly the dirt located at the corners and edges. ·     Compact design and easy operation. ·     Upgrades the printing quality
Application:  Cleaning steel solder printing stencils
Specification
Electric Load	35Watts
Output Frequency	40KHz
Electric Power	AC110V/60Hz, AC220V/50Hz
Dimension of Controller (mm)	370 x 250mm x 100mm
Dimension of Head (mm)	60mm x 60mm x 85mm
Weight of Controller	3 Kgs
Weight of Head	Injector 0.5 Kgs

Operating Method
	Step 1 Place the absorption pad under the screen, and pour a small amount of solvent (ethanol, butyl acetate, etc) on the screen.
	Step 2 Place the cleaning unit on top of the screen after the solder soften by solvent.
	Step 3 Switch on the power (manual/automatic control)
	Step 4 The pad absorbs the solder paste during the vibration.
Views Side View Top View                                                      Rear View                    Units: mm
Information contained in this page is subject to change without notice

GAM 60/ GAM 60A Solder Cream Mixer                       Back to top

     ● Universal fixturing for tube or jar
     ● Parts Sorting Option
     ● High Precision at 2 microns
     ● Set up for inspection based on needs via Windows Interface

GAM 62A Centrifuge Machine                                                        Back to top

     ● High performance removal of bubbles from adhesive
     ● Universal Holder for all types of dispense tubes
     ● Large clear countdown display
     ● Adjustable spin time
     ● Compact system with low power usage

 GAM 70 Laser Vision Measurement                                              Back to top

     ● Measurement of the solder area, cross-section and volume
     ● Various kinds of statistical charts based on needs
     ● Ideal inspection of solder paste thickness
     ● Thickness distribution chart, X-bar minus R control chart
     ● Process capability index Cp, Cpm, Cpk
     ● Inspection for length and thickness of other kinds of materials



GAM 70 Solder Paste Thickness Measurement
	●  Ideal inspection for solder paste thickness, including fine pitch, for enhanced printing technology and high precision requirements. ●  Detects various kinds of printing defect such as bridging, deviation location, etc ●  Laser vision measurement, non-contact and non-damaging ●  Statistical charts and process capability index provided as the real-time data for quality control. ●  Easy to operate, fast gathering and printing of data for reference and quality control.
Functions ●  Measure printed solder thickness, height, length and interval. ●  Providing various kind of statistical charts, such as the distributive thickness       chart, -R control chart ●  Process capability index: Cp, Cpm ,Cpk for reference ●  Analyze thickness of solder cross-section, area and volume. ●  Inspect length and thickness for other kinds of materials.
Application    ●   Printed solder and copper.
Printing For Control Chart   ●  -R control chart. ● Cp, Cpk, Cpm capability index.
Operation And Measurement ●  Display image full screen. ●  Easy to sample. ●  Easy to operate with Windows interface ●  Real-time statistic
Distributive Thickness Chart ●  Display and print the distributive thickness chart. ●  Display and print all statistics. ●  Analyses the percentage for distributive thickness.
Specifications
Vision Range	4.55mm x 3.50 mm
Magnification	X50, X90
Panel Size	350W x 265L mm
Precision (mm)	+/-0.0035 mm
Screen Resolution	0.007mm
Measurement Method	Laser Vision
Screen	15" LCD Monitor
Computer Specifications	IBM compatible interface
Lens	Color CCD Lens
Light	Circular LED Lighting
Focus	Micro-adjustable focus device
Power	110VAC, 60Hz / 220VAC, 50Hz
Dimensions	350(L) x 400(W) x 350(H) mm
Weight	30 kg
Dimensional View
Top View                                         (Units: mm)                       Front View                                          Lateral View
Information contained in this page is subject to change without notice

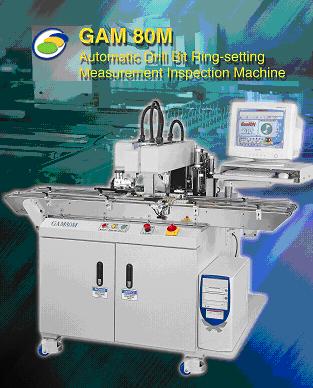

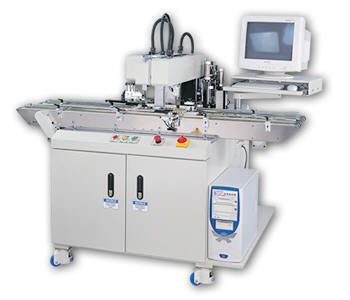

GAM 80M Automatic Drill Bit Ring-Setting Measurement and Inspection System   Back to top

     ● Automatic operation with ring setting, diameter inspection
     ● Effective drill bit length and frontal surface inspection
     ● Unique image processing inspects and checks for defective drill bits
     ● Universal drill bit carry box
     ● Easy to learn Windows interface


GAM 200A Reflow Profile Checker                                   Back to top

     ● Windows interface Software
     ● 4 or 6 channels of temperature measurement for the reflow oven
     ● Single button operation
     ● Powerful software provides temperature curve, time analysis


GAM 800C/820 VAMIS Vision Added Measurement Inspection System          Back to top

     ● Dimension Measurement
     ● Vision Comparison
     ● Coordinate reading
     ● Negative Measurement

VAMIS 820 System

GAM 800W NC Data Programming Machine                                             Back to top

     ● Easy coordinate data pick up
     ● Film, stencil, mask defects detected using high accuracy
        magnifying lens
     ● Universal data format


GAM 900 Hole Inspection Machine for Printed Circuit Boards                    Back to top

     ● PCB to CAD Comparison
     ● Parts Sorting Option
     ● High Precision at 2 microns
     ● Set up for inspection based on needs via Windows Interface
